R22 SHELL & TUBE CONDENSING UNIT (534aic)
Price (excl GST): $6,650
Make: Terry
Model No: V4S
Motor: 3ph, 7.5kW
Condition: good
Location: New Zealand

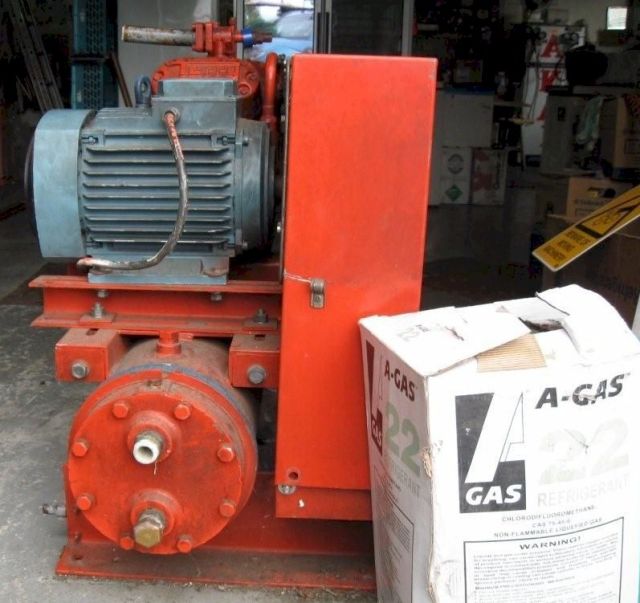

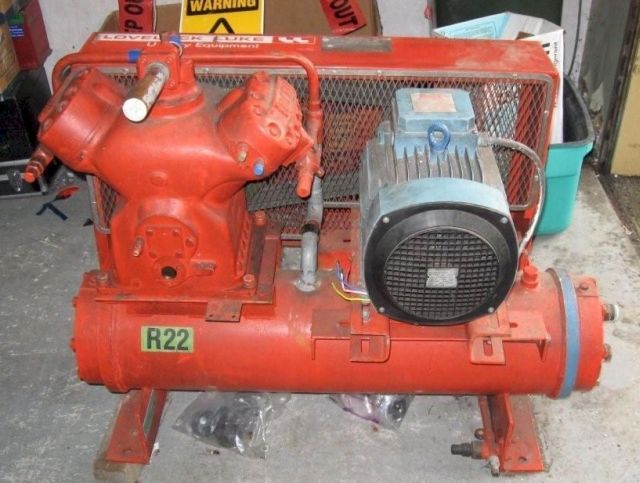

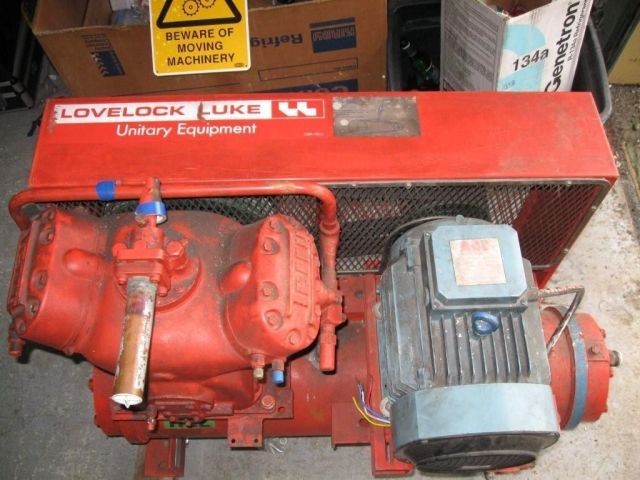

This R22 shell & tube condensing unit comprises of a Terry V4S mounted on water cooled seawater condenser model T53-W14M. Being 34 tubes, 6 passes (1035mm x 264mm diameter), nominal heat rejection of 52kW. Terry V4S running at 720 RPM, if RPM 1000 the capacity on R22 would be:
5 degrees C = 48kW,
0 degrees C = 41kW,
-5 degrees C = 34kW,
-20 degrees C = 18kW

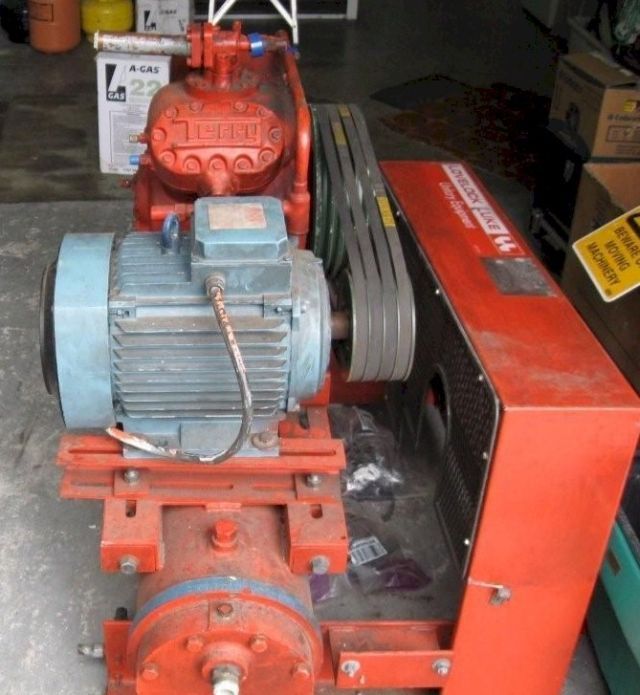

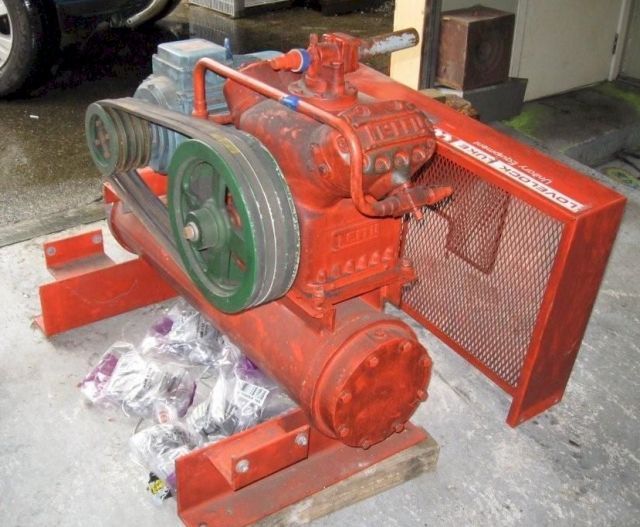

Condensing unit has no plant ancillarys attached. The unit is belt driven c/w 7.5kW, 3 phase motor.
