MODULAR COOLING SYSTEM (132he)

ENQUIRE NOW SIMILAR ITEMS

Price (excl GST): POA

Make: Iopak

Model No: 316 500 Module

Motor: 3ph

Condition: New

Location: Australia

Capacity: 500L

Type: water

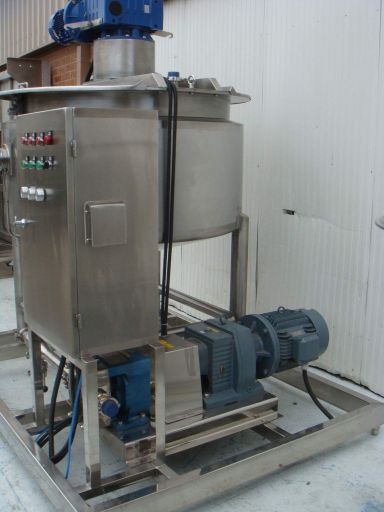

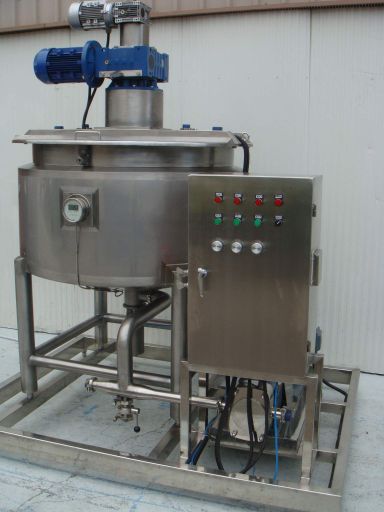

This NEW cooler system is a culmination of the suppliers engineers experience from clients documented needs for many years and have designed this modular cooler system. This newly designed cooler consists of 1 x 500L stainless steel jacketed vessel fitted (coolant is pumped through the jacket) with a contra-rotating scraped surface mixing arm, 1 x 2 inch (50mm) rotary lobe pump and 1 x integrated control box with piping - all skid-mounted on a stainless steel platform. This module will be best suited for sauces etc (an emulsifier is an optional extra in this model).

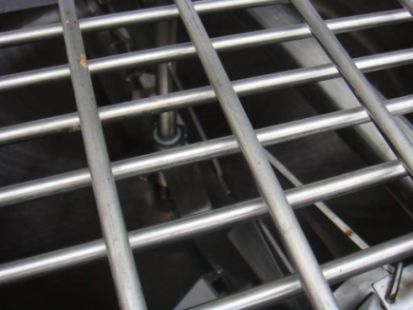

The 500 litre stainless steel jacketed contra-rotating unit has 3 inch (75mm) product outlet diameter (including an air actuated discharge valve). A swept surface (teflon tipped) stirrer is top and bottom bearing supported and direct driven by a 2.2kW, 29rpm, 415V AC, 3 phase gear motor. An additional contra-rotating centrally mounted agitator is fitted with a 0.75kW, 49 rpm geared motor. A digital (-20 to 150 degrees C) temperature indicator indicates the temperature of the tank contents.

Design Pressure (WP): 300 kPa (43.5 psi),
Test Pressure (TP): 450 kPa (65 psi),
Design Temperature (DT): 135 degrees C (max 150 degrees C),
Internal Diameter: 1100mm,
Internal Depth: 750mm,
Outer Diameter: 1250mm,
Lid height above floor: 1400mm,
Outlet Height above floor: 560mm,
Overall Height: 2250mm,
Jacket inlet and outlet ports 25mm diameter (diameter),
Material of Construction: 316 s/s (inner) 304 s/s (outer),
Wall Thickness: 4mm inside wall, 1.6mm jacketed wall.

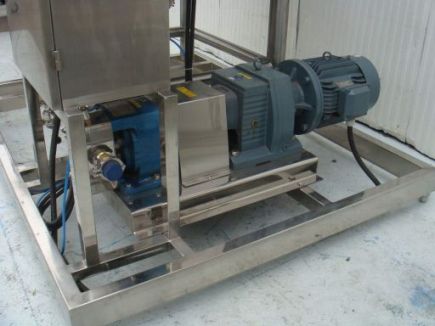

LOBE PUMP:
This NEW rotary lobe pump comes with a 5.5kW, 500 rpm ABB motor and a control panel rated a flow of 5600 - 11,000 litres / hr (subject to product and head) at a pressure of 5 bar (72.5 psi). This model comes with a stainless steel shrouding and a speed controller (inverter).

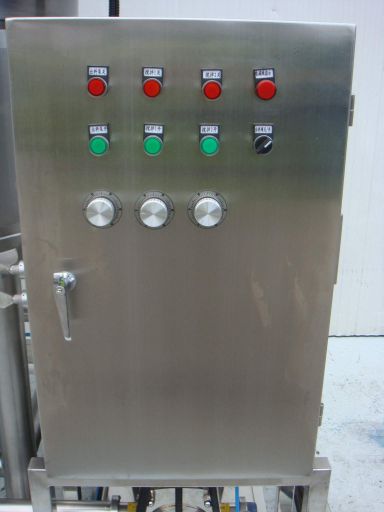

The module is mounted on a fully stainless steel skid with stainless steel control panel.
