LOBE PUMPS (294pu)

Price (excl GST): POA



Model No: FL

Motor: 3ph

Condition: New

Location: New Zealand

Capacity: upto 70m3/hr

Type: lobe

Material: stainless

Inlet Diam: various

Outlet: various

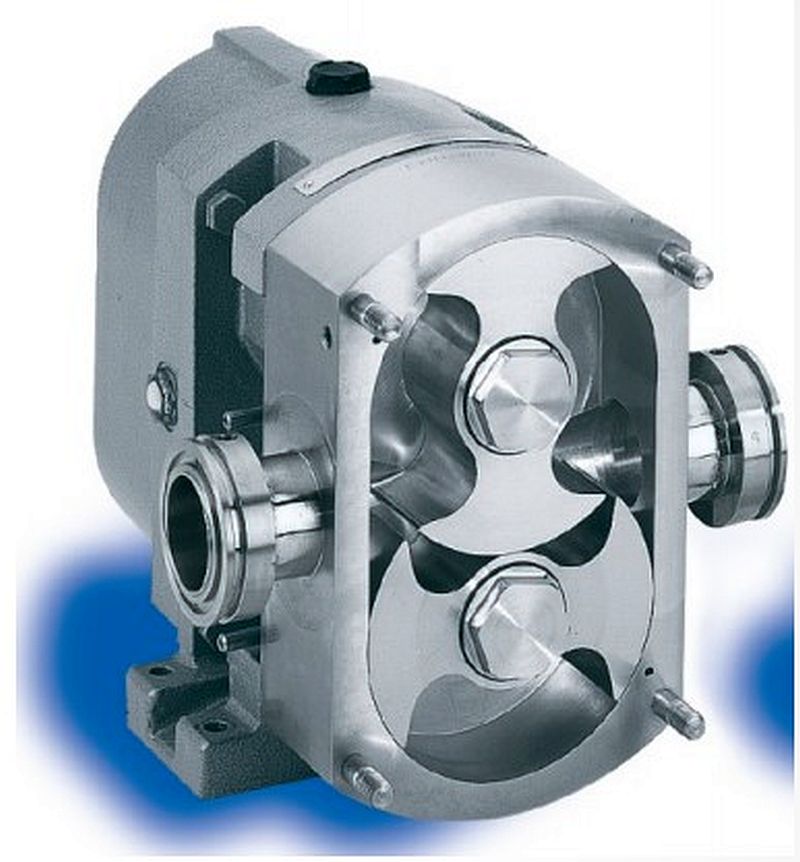

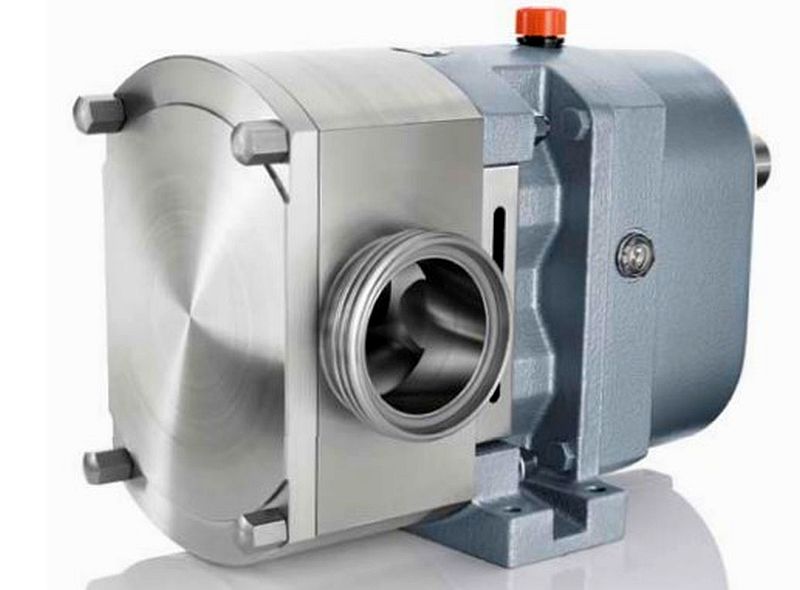

These NEW lobe pumps feature a modern, novel lobe design. The design of the lobes prevents the product being squeezed, thus minimizing the risk of it being damaged. Comes in 8 sizes with flow rates up to 70m3/h. Is suitable for homogeneous products, viscosities up to 100,000mPas, and suited to low suction heads with discharge pressures up to 12 bar (174 psi). Are completely suitable for CIP methods and can be sterilised. Can be supplied either with a heating jacket or a cooling jacket, and with a horizontal or vertical port. Have mechical seals and are direct drive.

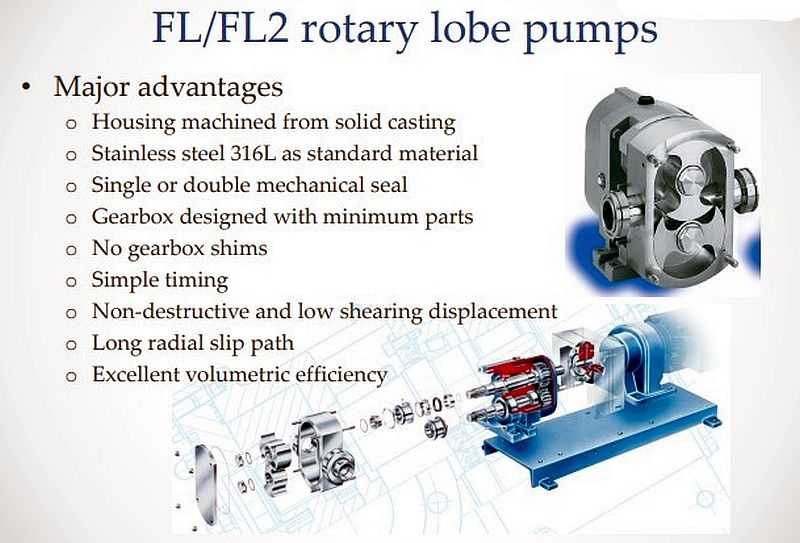

Major advantages:
• Housing machined from solid casting
• Stainless steel 316L as standard material
• Single or double mechanical seal
• Gearbox designed with minimum parts
• No gearbox shims
• Simple timing
• Non-destructive and low shearing displacement
• Long radial slip path
• Excellent volumetric efficiency
