LIQUID PISTON FILLERS / DEPOSITORS (219fip)

ENQUIRE NOW SIMILAR ITEMS

Price (excl GST): AUD$3,680 - AUD$4,780

Motor: air

Condition: New

Location: Australia

Capacity: 10-5000ml

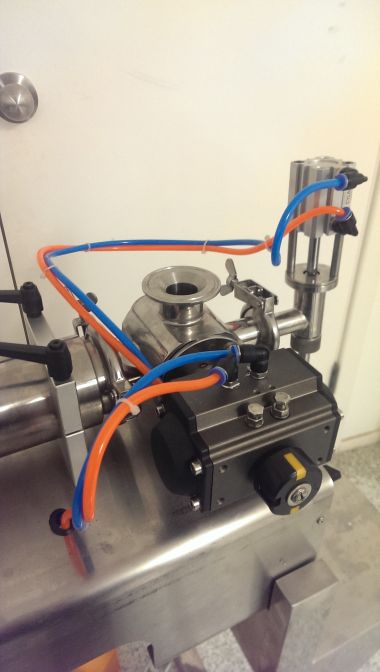

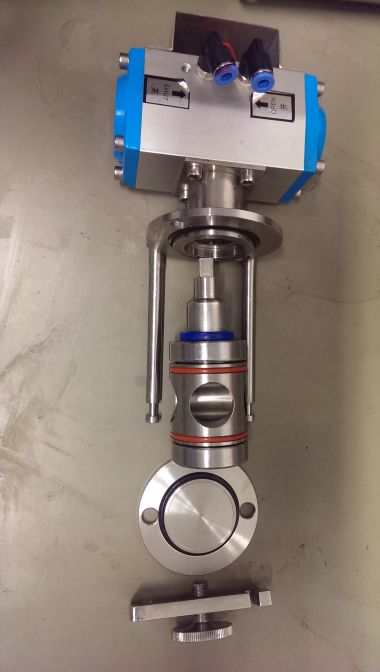

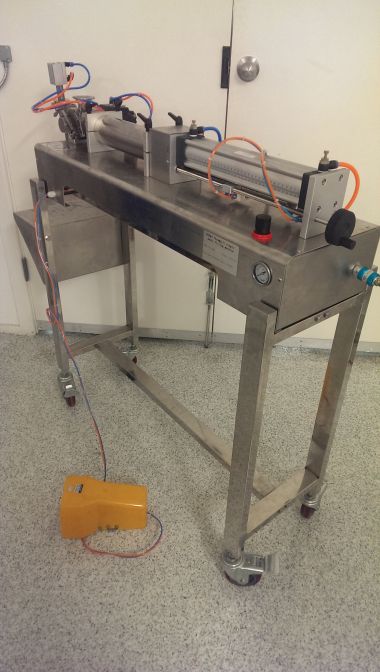

These new depositor/fillers are fitted with poppet valves and are suitable for liquids. Have a depositing accuracy of +/- 2%. The filling cycle is initiated by a foot operated pedal and product can be pumped directly from the mixing tank. These units features poppet type head valving, positive shut-off valve, stroke limitation fill volume adjustment, and is designed for table top mounting. Construction is of grade 304 stainless steel and the control system is pneumatic (6 bar / 87 psi).

Can come in the differing deposit range models and the following prices include one of either a 35 litre feed hopper or 2000mm hose and tri-clove fitting (to reduce double handling) so the depositor can be coupled directly from a header feeder tank, cooker or alike:
10 - 300ml: AUD$3,680
50 - 500ml: AUD$3,790
100 - 1000ml: AUD$4,120
300 - 2600ml: AUD$4,440
500 - 5000ml: AUD$4,780

Prices above do not include easy clean nozzle.

Additional extras that can come with the units at additional cost include:
• Large throat easy clean nozzle for particulates / dairy: AUD$385
• Additional 50 litre hopper: AUD$380
• Additional 2m hose and connections: AUD$380
• Custom Hopper (10 - 80L): POA
• Custom Nozzles: POA
• Stainless Steel Stand with lockable castors for 10-300ml / 50-500ml / 100-1000ml models: AUD$329
• Stainless Steel Stand with lockable castors for 300-2600ml / 500-5000ml models: AUD$389
• All Contact grade 316 Stainless Steel: POA
• All Materials grade 316 Stainless Steel: POA

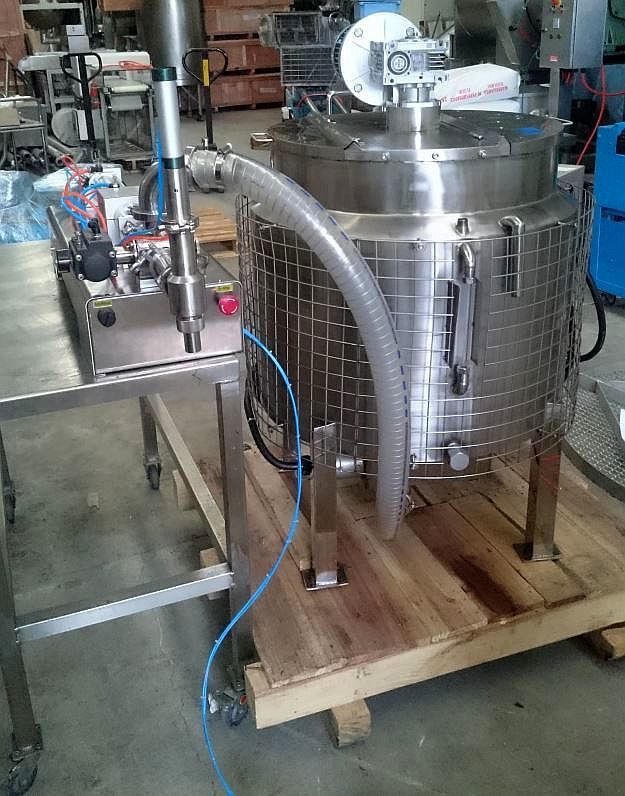

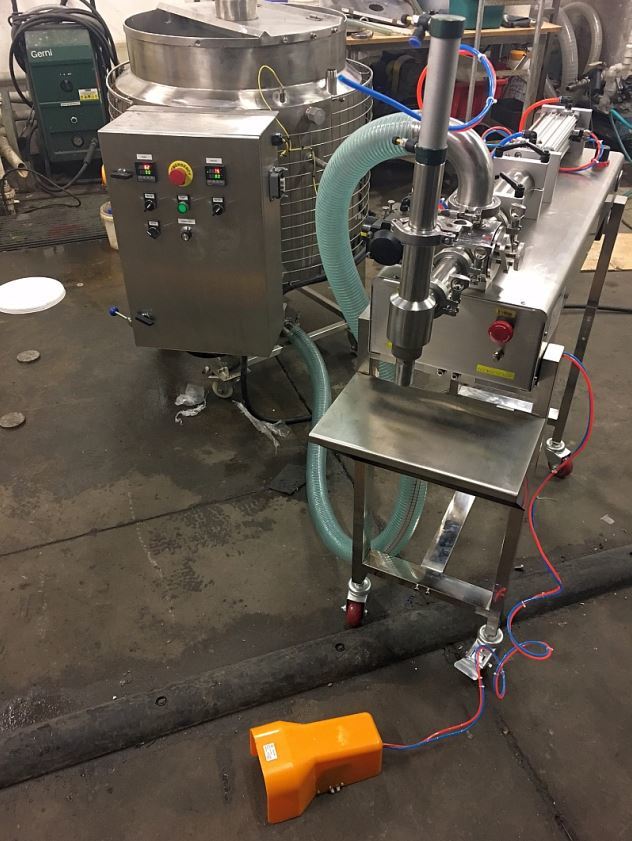

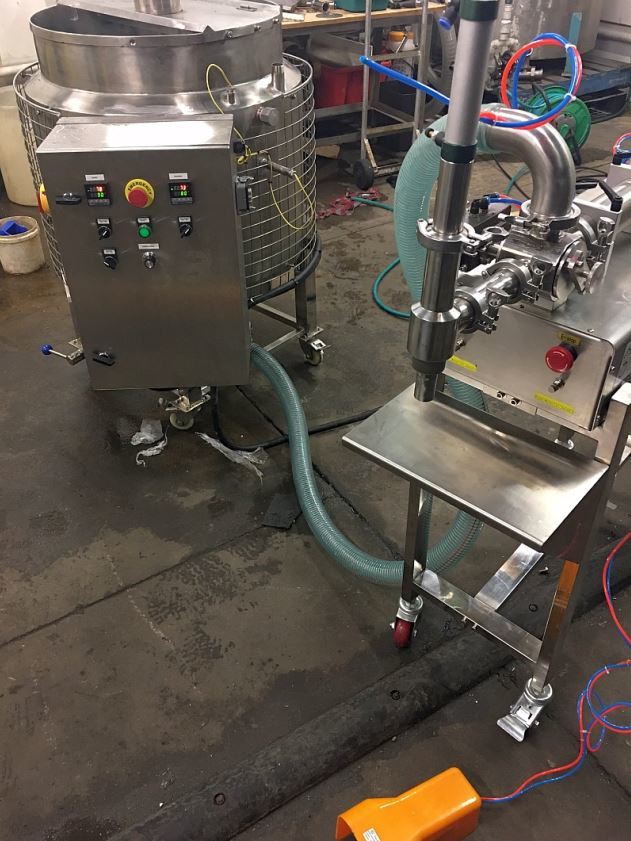

Can come coupled via a hose assembly from a self generating cooker (pleased view listing 107jasr) to reduce double handling as shown in several of the photos displayed so cooked product can be filled / deposited product directly from the cooker via the depositor.

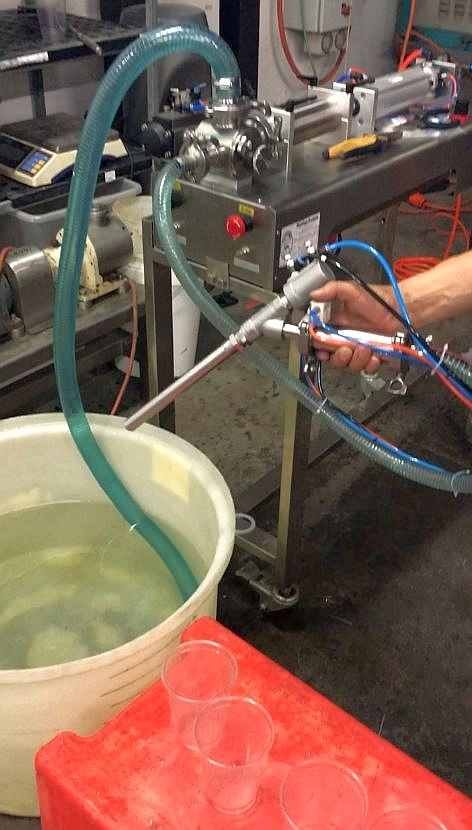

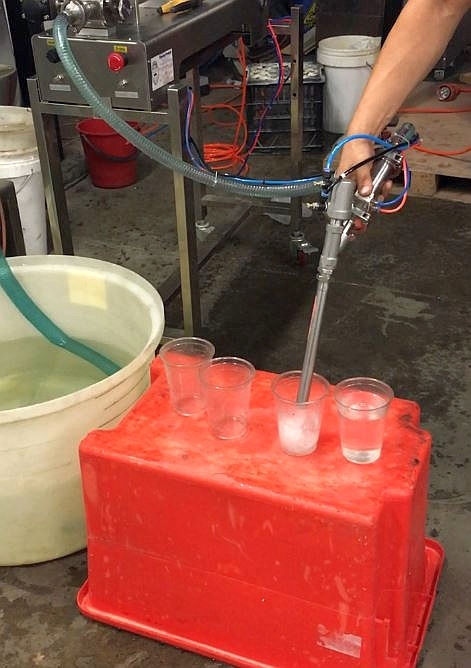

These depositors can also come with handgun type assembly with trigger to activate filling at additional cost such as displayed in a couple of the photos.

NB - PLEASE NOTE the prices displayed are in Australian dollars with freight and any related costs being buyers cost. Australian GST will be applicable if purchased by an Australian company.
