DIVIDER ROUNDERS (158bad)
Price (excl GST): € 14,480 (Euro)
Model No: Hercules PH
Length: 1600
Width: 580
Height: 1420
Motor: 3ph
Condition: New
Location: Spain
Output: 1000 to 4000/hr
Capacity: 20 to 1400gm

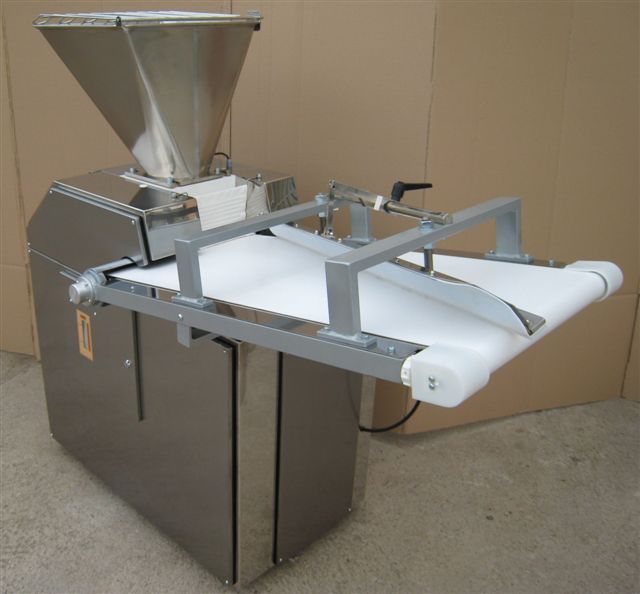

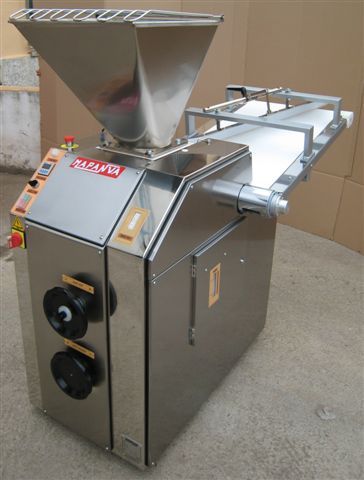

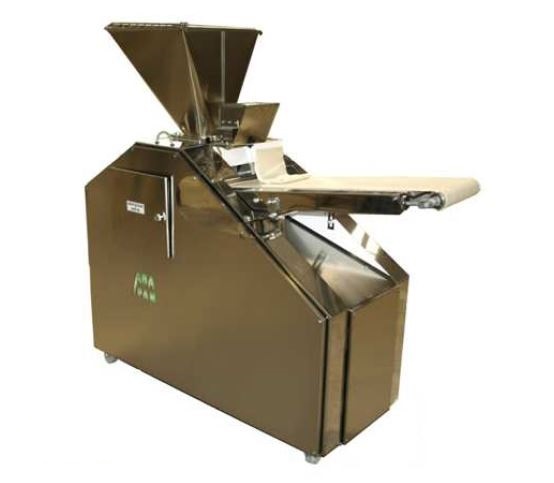

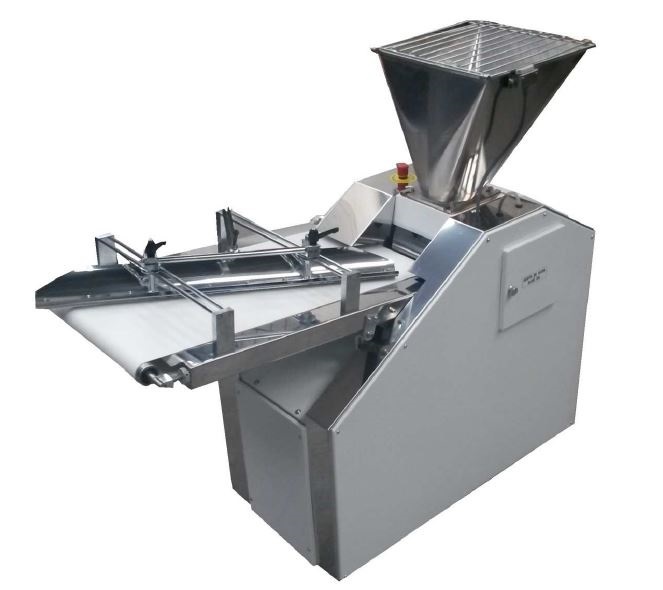

These NEW divider rounders will perform divisions from 20 grams to 1400 grams (1.4kg) dependent on the piston diameter fitted. Are variable speed and will manufacture from 1000 pieces per hour upto 2200 pieces per hour. There are three (3x) double pocket/piston models capable of producing upto 4000 pieces per hour.

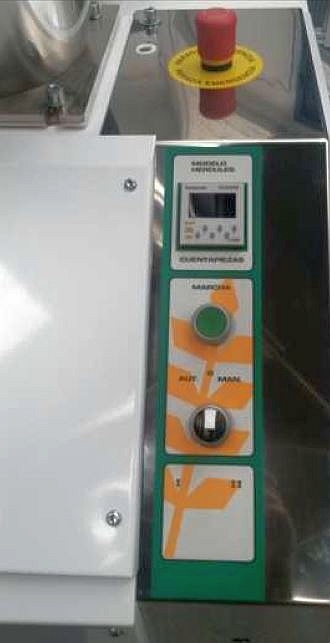

Are fitted with hinged stainless steel kneader arm with teflon coating for all kinds of doughs. Have digital piece counter and automatic stopping. Have manual start-up and stoppage and come with automatic closed circuit oiling system. Come standard fitted with 45 kilogram stainless steel dough hopper which can optionally be teflon treated and can also be supplied with larger feed hoppers at additional cost with prices and options outlined below.
Single pocket models are rated 1000 to 2200 pieces per hour priced at € 14,480 (Euro) with the piston sizes available being:
60 diameter: 20 to 200 grams
80 diameter: 30 to 300 grams
90 diameter: 40 to 400 grams
110 diameter: 60 to 600 grams
120 diameter: 100 to 1000 grams
135 diameter: 150 to 1250 grams
140 diameter: 180 to 1400 grams
Two pocket models are rated 2160 to 4000 pieces per hour priced at € 16,670 (Euro) with the piston sizes available being:
60 diameter: 20 to 220 grams
80 diameter: 30 to 300 grams
90 diameter: 40 to 400 grams
Stainless steel hopper capacities:
45kg dough (standard) with teflon treatment an extra € 250
80kg dough € 1,180 with teflon treatment an extra € 340
150kg dough € 1,450 with teflon treatment an extra € 590
200kg dough € 1,600 with teflon treatment an extra € 690
250kg dough € 2,350 with teflon treatment an extra € 900
Optional extras:
Laminated/covered in stainles steel € 800
Flour duster with regulator € 800
Electronic adjustament of speed from 700 to 2200 per/hr € 850
Electronic weight adjustment € 970
Pistons without lubrication of oil € 500
Electrical outlet power 3ph/400 volt € 200
Remote control (start and stop) 5m € 200
Deported/detached control panel € 1,900
Longer 120cm rounding sytem € 1,900
Independent engine for conveyor belt € 700
Inverter for conveyor belt + independent engine € 1,750 €
Automatic device to obtain double weight of pieces € 1,750

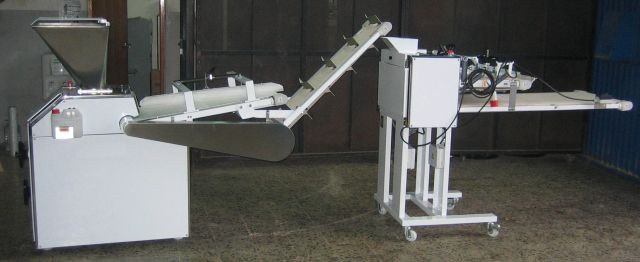

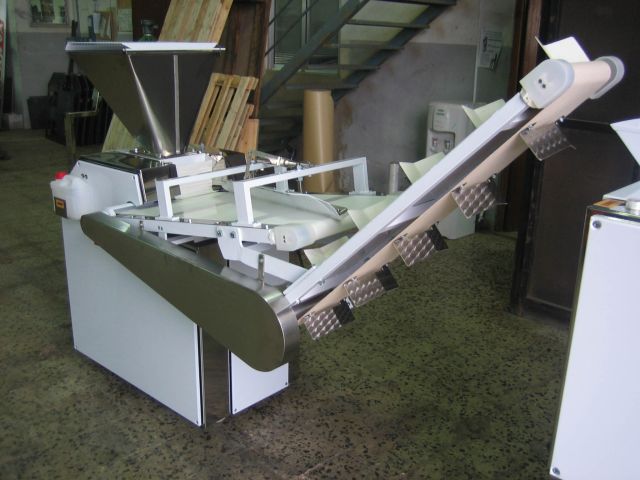

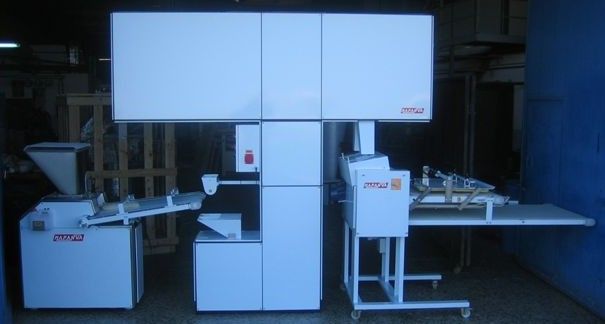

Also shown within the photos are lines set-up with the divider moulding attachment along with lifting conveyor to a horizontal bread moulder. Or having an intermediate prover incorporated. These additional items are available at additional cost.
Videos of these machines in operation via clicking the following links:
www.youtube.com/watch?v=NuHifyFHfOk&;list=UU_KUmyvKoqZT7f_eIu2iwlA&index=118
www.youtube.com/watch?v=1GNRDzkYnfg&;list=UU_KUmyvKoqZT7f_eIu2iwlA&index=120
www.youtube.com/watch?v=4wG_zAHsq6A&;list=UU_KUmyvKoqZT7f_eIu2iwlA&index=122
