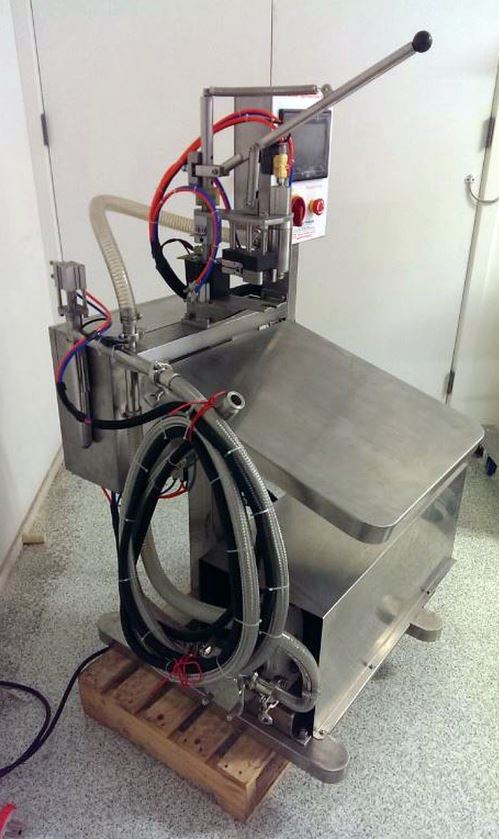

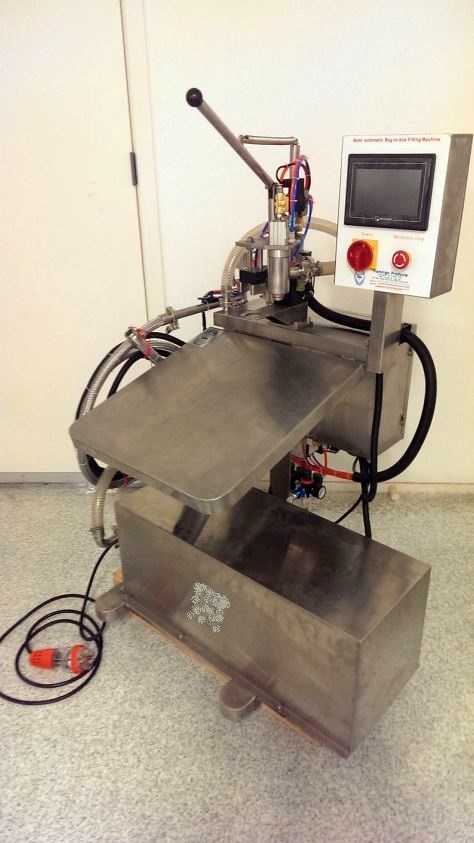

BAG IN BOX FILLERS (340fi)

ENQUIRE NOW SIMILAR ITEMS

Price (excl GST): POA

Motor: 1ph, air

Condition: New

Location: Australia

Output: 160 to 180 bags/hr*

Capacity: 1 to 30 litres

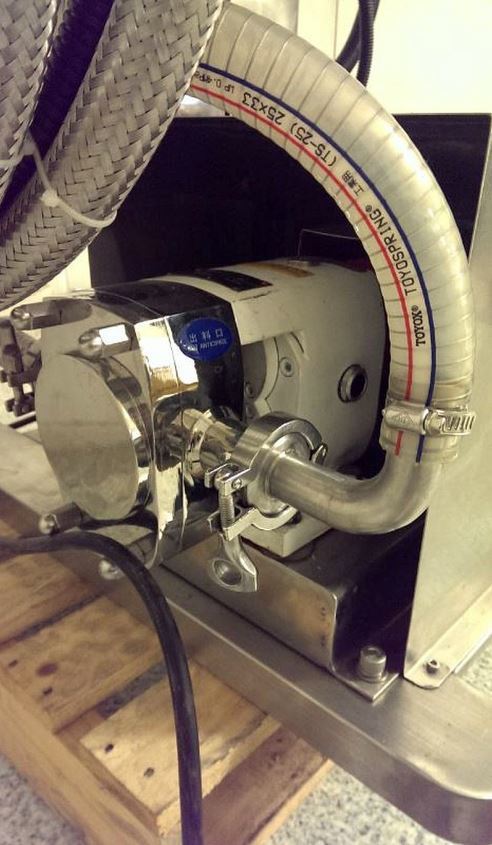

These NEW Bag In Box fillers can come with centrifugal, lobe pump. or piston design depending on product to be filled.

Technical Parameters for BIB:
• Design Program / HMI
• Fill range: 1L to 30L (centrifugal pump feed)
• Filling precision: ±0.5%
• Filling speed: 160 to 180 bags/hour* (when filling 5L bags)
• Material entrance pressure: ≤0.3 to 0.35 mPa
• Power: 0.38KW
• Supply voltage: AC240V/50Hz
• Air consumption: 0.2 m3/min
• Operating pressure: 0.4 to 0.6mPa

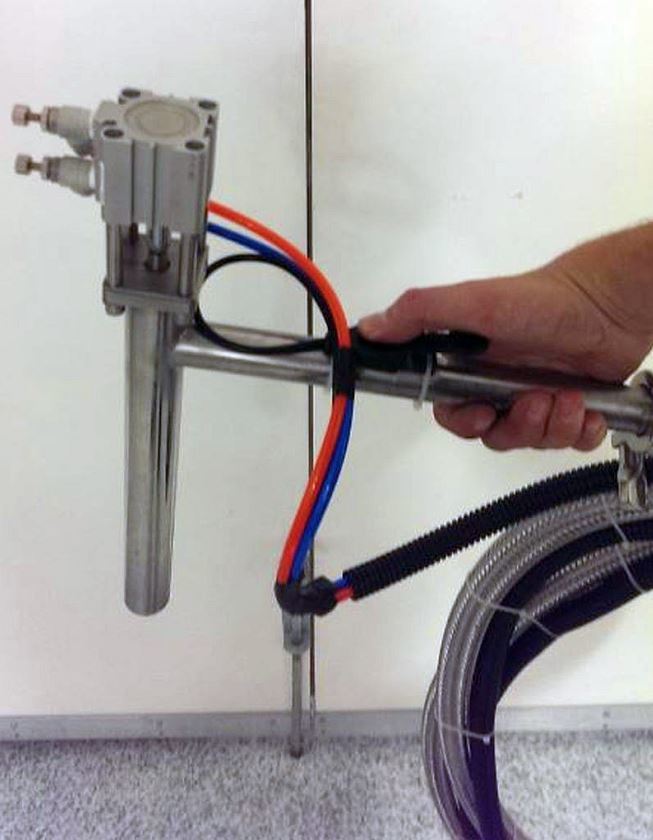

• Hand nozzle attachment available
• Digital touchscreen PLC with ability to save preset filling volumes and parameters

To view a video of these units operating with a lobe pump fitted, please click the following link: www.youtube.com/watch?v=F6IcqeouPCk&;list=UU_KUmyvKoqZT7f_eIu2iwlA&index=138

To view a video of these units operating for thin liquids (multipurpose cleaners and alike) with a piston style Bag in Box Filler, please click the following link: www.youtube.com/watch?v=PMrIcyuzMzA&;list=UU_KUmyvKoqZT7f_eIu2iwlA&index=18
