2 HEAD LINEAR WEIGHER FEEDERS (513pa)

ENQUIRE NOW SIMILAR ITEMS

Price (excl GST): POA

Make: Iopak

Model No: LW-2

Length: 600

Width: 900

Height: 1200

Motor: 1ph

Condition: New

Location: Australia

Output: upto 40/min

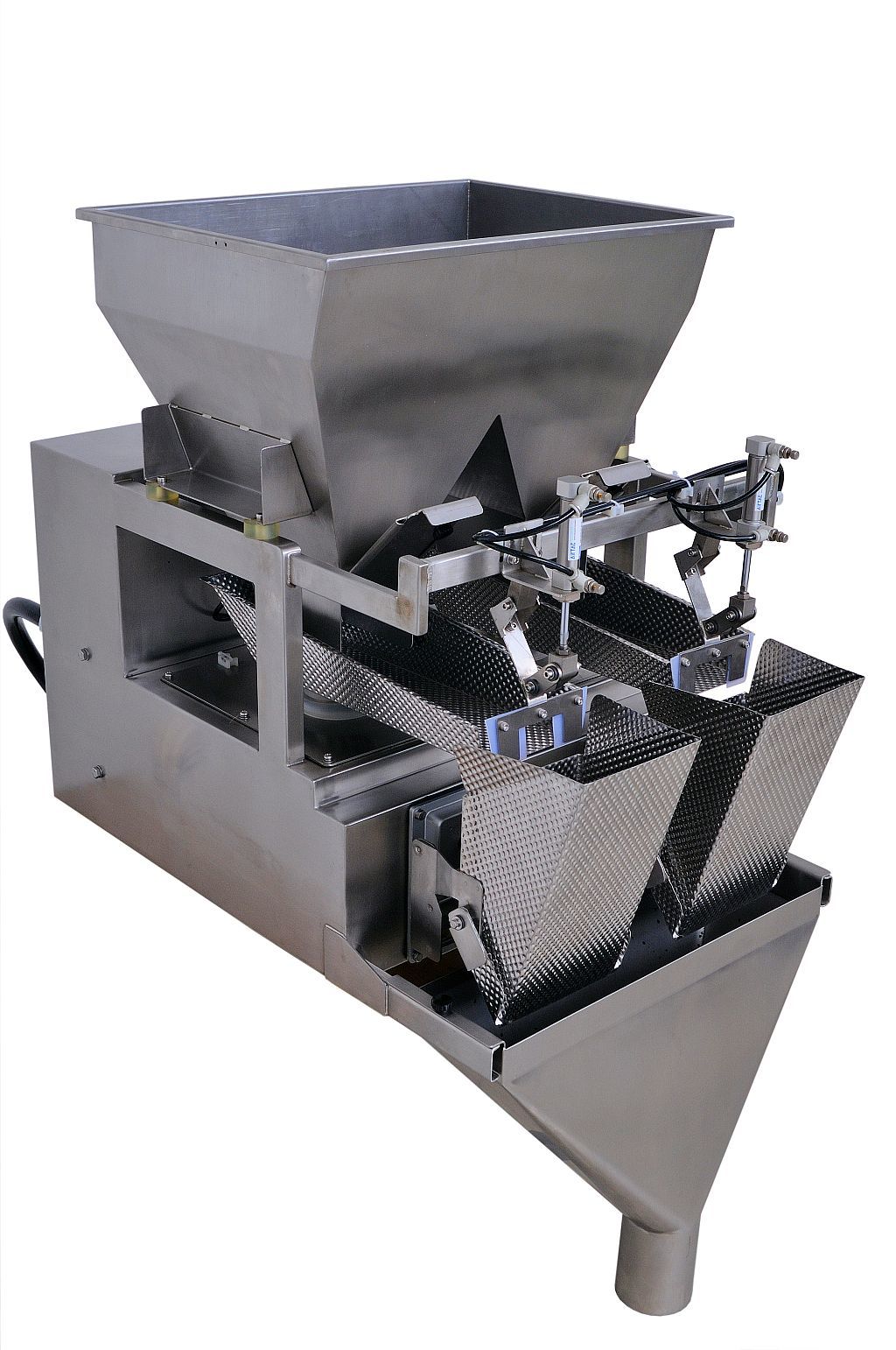

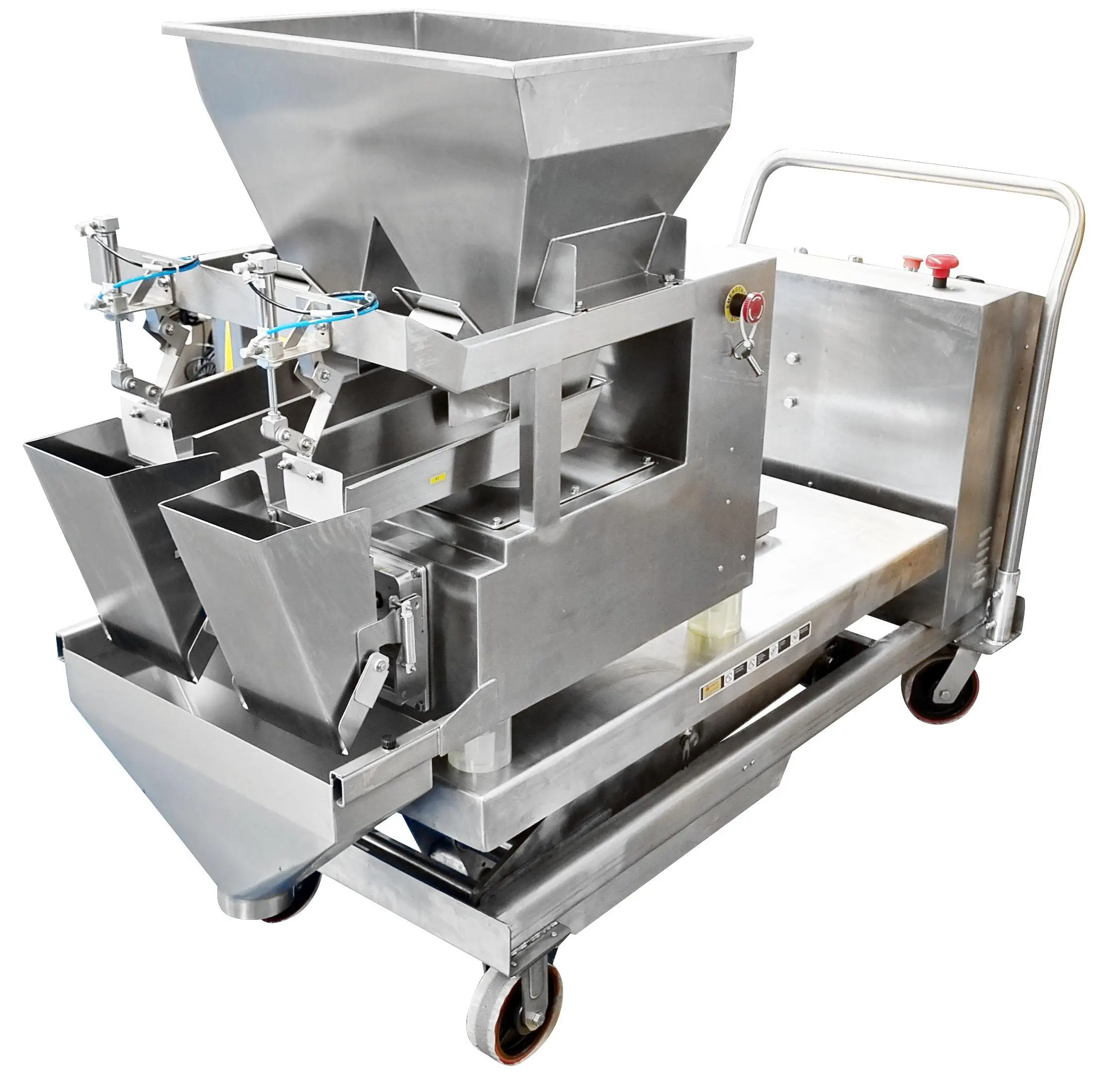

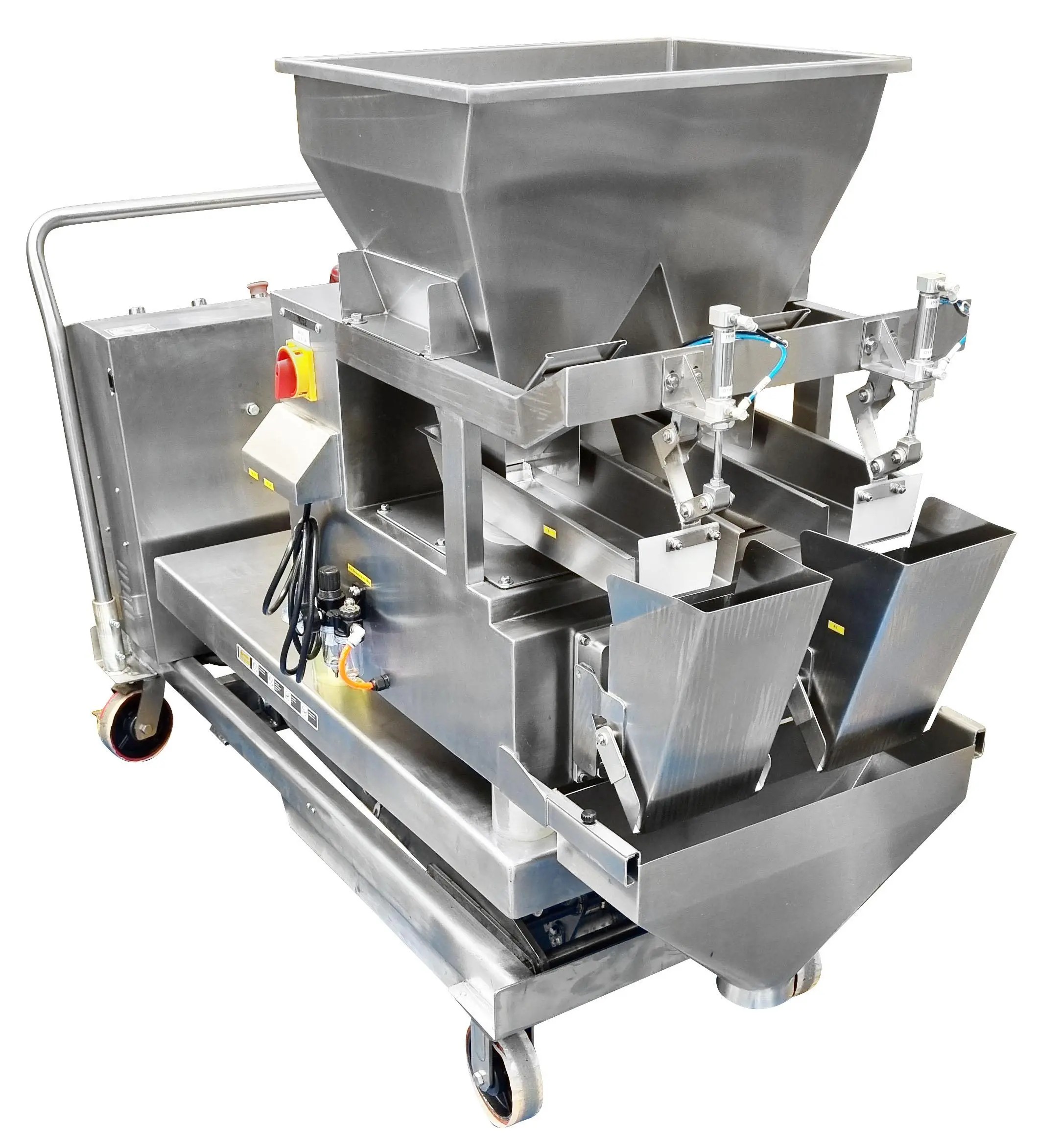

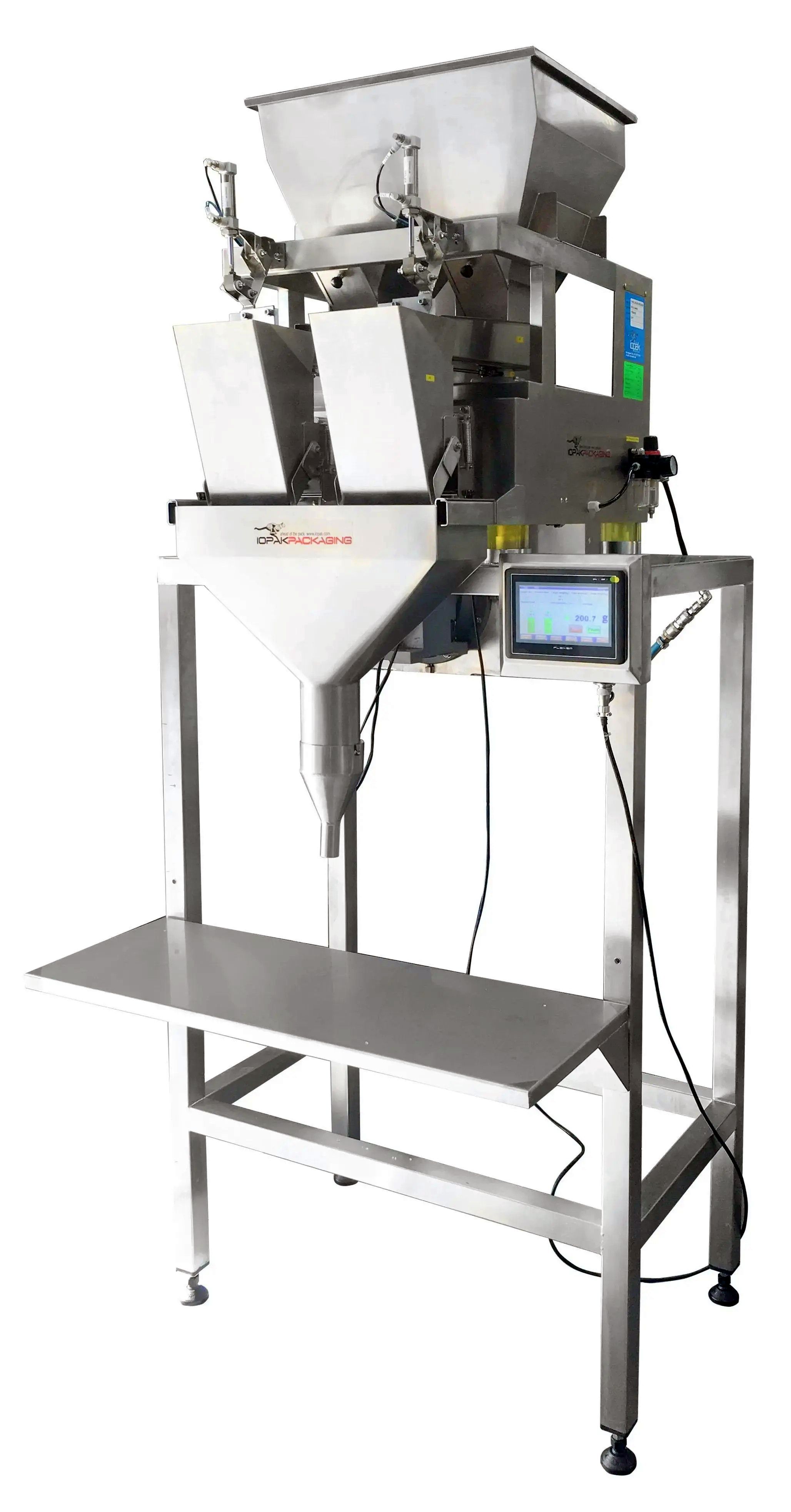

These NEW 2 head linear weighers are designed for accurate dosing and weighing of granular food products. The machine utilises two (2x) 3000ml hoppers with step motor-driven feeders to achieve speeds of 10 to 40 packs per minute. It supports a wide weighing range from 10g to 1500g with accuracy between ±0.2g and ±2g depending on product characteristics. Constructed primarily from food-grade SUS304 stainless steel, the unit includes a 7-inch touchscreen interface and is optimized for granular packaging tasks in food processing lines. The system is powered by a single-phase supply and integrates easily with form-fill-seal or other automated packaging equipment. Operating conditions support use in ambient environments between -10°C and 40°C with non-condensing humidity up to 85%.

• Dual-head configuration for higher output
• Adjustable weigh range (10–1500g)
• Step motor drive for precise control

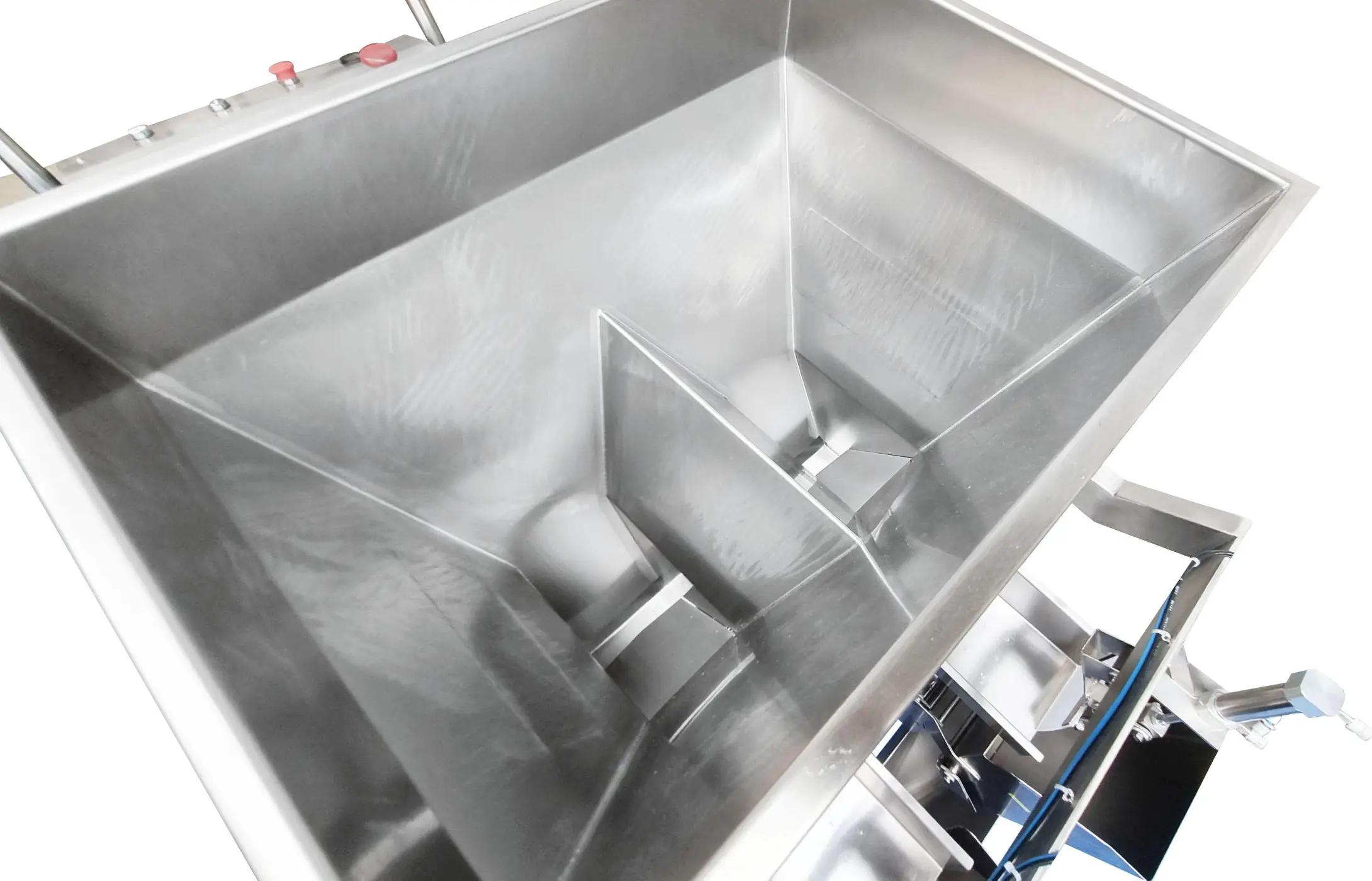

• Hopper capacity of 3000mL per head
• Stainless steel 304 construction for food safety
• Preset memory for 10 product parameters

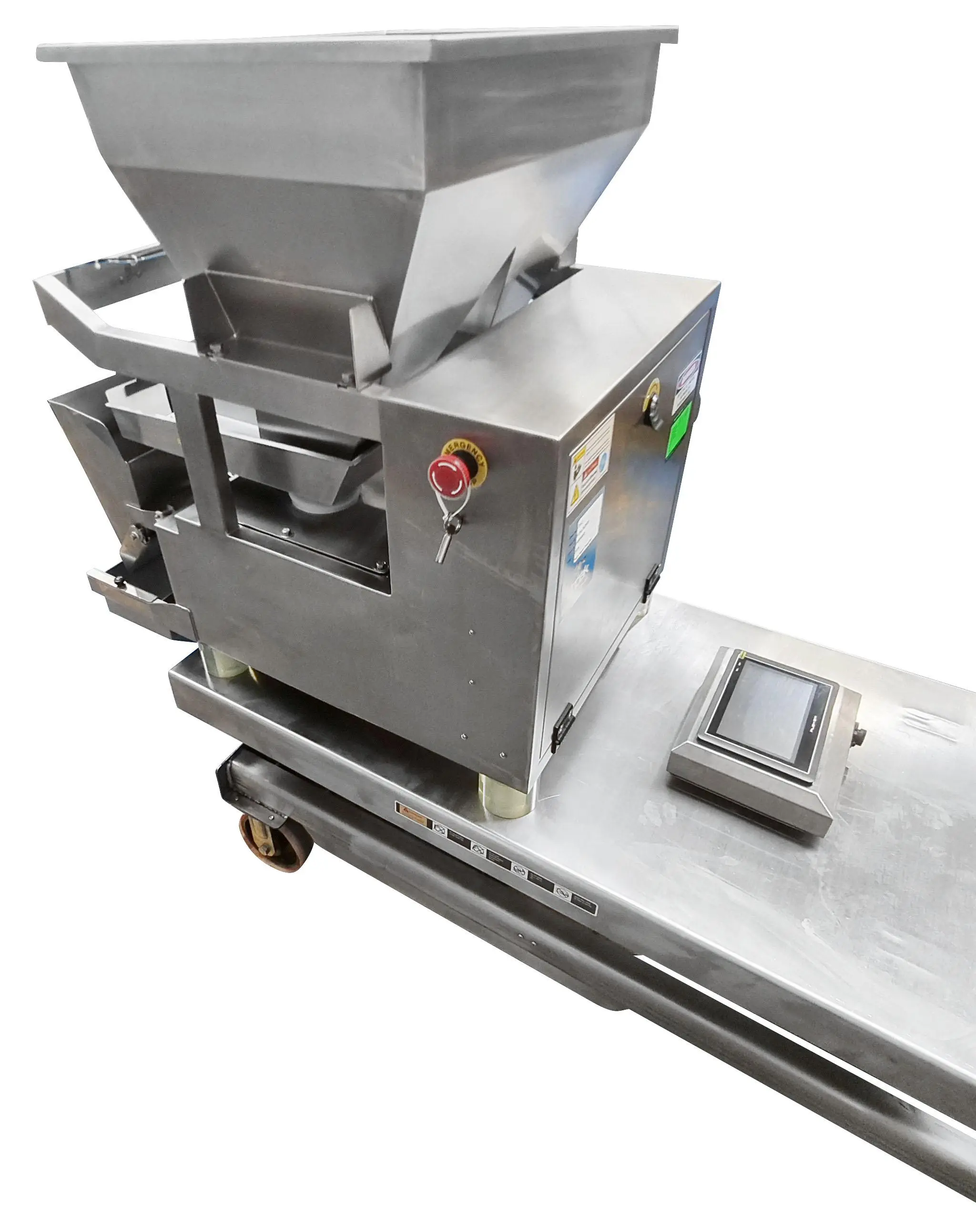

• 7-inch operator touchscreen panel
• Single-phase power for simplified installation
• Supports granular product packaging
• Compact footprint for limited floor space
• High-speed operation (up to 40 ppm)
• Modular vibrator and hopper components
• Product mix capability (max 2 types)
• Q235A linear vibrator frame
• Tool-free disassembly for easy maintenance
• High accuracy (±0.2/2g depending on product)
• Compatible with downstream packaging machines
