CAP ELEVATORS / FEEDERS (186fic)

Price (excl GST): POA



Model No: XEST

Height: 3100

Motor: 3ph

Condition: New

Location: Australia / New Zealand

Output: upto 18,000 caps/hr

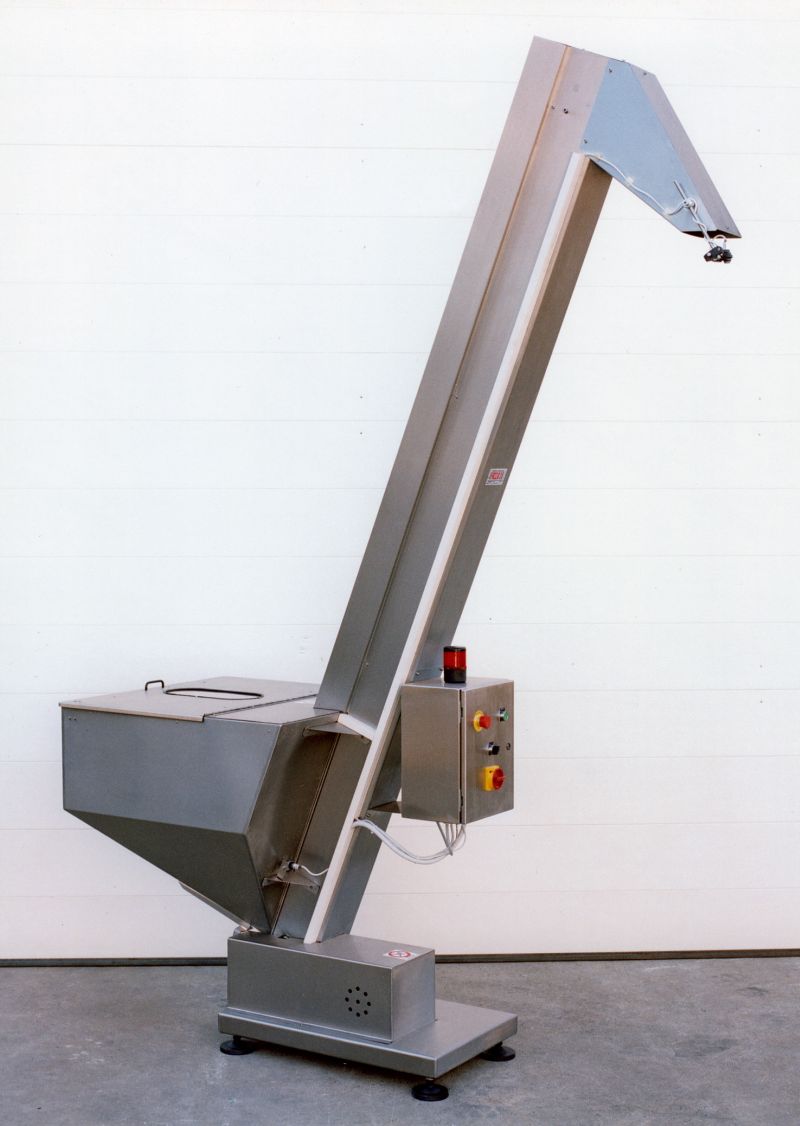

These NEW mechanical cork/cap elevators automatically feed caps capping machinery hoppers. The elevator includes one discharge head. When corks are used the head is moved over the cork hopper. When screwcaps are used, the head is moved over screwcaps hopper.

Includes:
• Frame in stainless steel AISI 304

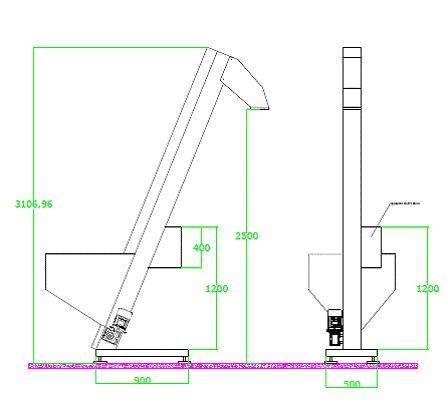

• Total height: 3107mm
• Height from ground to discharge head: 2500mm standard (can be custom made)
• Voltage: 400V, 50Hz. 3ph
• Installed power: 0.18Kw
• Controls power: 24V
• Weight: 150kg
• Standing base
• Hopper 850mm x 850mm, containing >6000 caps equivalent to 350 litres
• Max speed 18,000 caps/corks per hour
• Conveyor belt made of PVC (food approved) complete with pick up flights.
