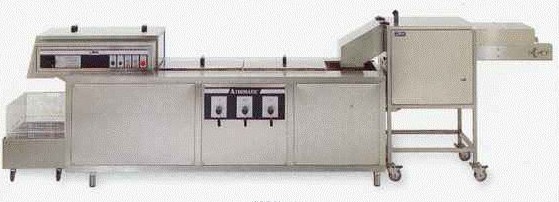

CONTINUOUS WASHERS (052clp)
Price (excl GST): POA
Make: Nilma
Model No: Atirmatic
Length: 3000 / 4470
Width: 1000
Height: 1230
Motor: 3ph
Condition: New
Location: Italy
Output: 400 - 1500kg/hr
All large catering establishments and food industries need to process large quantities of fresh vegetables, hence this operation has to be very quick and efficient. This NEW continuous vegetable washing machine is a technological breakthrough in vegetable washing with a unique washing system, extremely high automation and excellent results (bacteriological tested) and is the perfect answer, processing large quantities, giving high quality results all with considerable labour savings.
On offer are two (2) models rated hourly production outputs of:
1st model: approximately 400 kg /hr of light vegetables and 800 kg/hr of heavy vegetables.
2nd model: approximately 700 kg /hr of light vegetables and 1500 kg/hr of heavy vegetables.
These units create time savings due to no handling times because all the operations are carried out on a continuous basis meaning it performs the function of 5 staff automatically.
The features of these units include:
Entirely made of 18/10 stainless steel,
Holding frame made of 18/10 tubular stainless steel supported by legs on jacking screws (adjustable in height),
Washing drum equipped with water nozzles and perforated bottom grade,
Product unloading belt, side edges and bottom grating can be manually removed for cleaning,
Rinse sprays fed with water from mains, equipped with solenoid valve controlled by the unloading belt operation,
Counter drum divided in to washing sections (2 sections for the smaller and 3 sections for the larger model) with independent water flux control,
Quick opening hydraulic valves for drain, washing regulation and water inlet, all constructed of stainless steel.
These machines are fitted with a unique washing function based on a continuous whirl of clean water passing over the product (the whirl intensity can be regulated according to individual product qualities). The vegetables move in a helical motion caused by the whirl of clean water, making them move forward and eliminating impurities in the process. The small particles of dirt and soil are dragged by the whirl and conveyed through the holes in the washing drum to the counter drum. In the counter drum the water is calm which allows the particles to settle and from there they are run directly in to the drain.
The design of these models ensures the washing process is always in the clean water area.
After the washing process, the produce is rinsed with new water from the mains supply on the unloading belt. This patented washing system eliminates the need for pre-washing vessels and filters.
These units are versatile and can be used on a wide variety of products including vegetables, fruits, fish and other products. Can also come with equipped with additional dosing pump for usage of disinfectant liquids during the washing process.
Has low voltage (24V) control board rated IPX4 protection.
Requires models require 4.0kW and 7.35kW respectively, 400V, 50Hz, 3 phase electrical power.
The washer can also have a leaf vegetable strip cutter (300sl) and / or dryer (64ds) placed in-line.
To view a video of the Atirmatic 700 continuous washer for non-floating products, please click the following link:
www.youtube.com/watch?v=SWXHmmbywZQ&;list=UU_KUmyvKoqZT7f_eIu2iwlA&index=81
