100 - 500 LITRE STAINLESS RIBBON BLENDERS (444mir)

ENQUIRE NOW SIMILAR ITEMS

Price (excl GST): POA

Make: Muyang

Model No: GTE-WLDH

Motor: 3ph

Condition: New

Location: New Zealand

These new stainless steel horizontal ribbon blenders come in a variety of working volumes.

They feature:

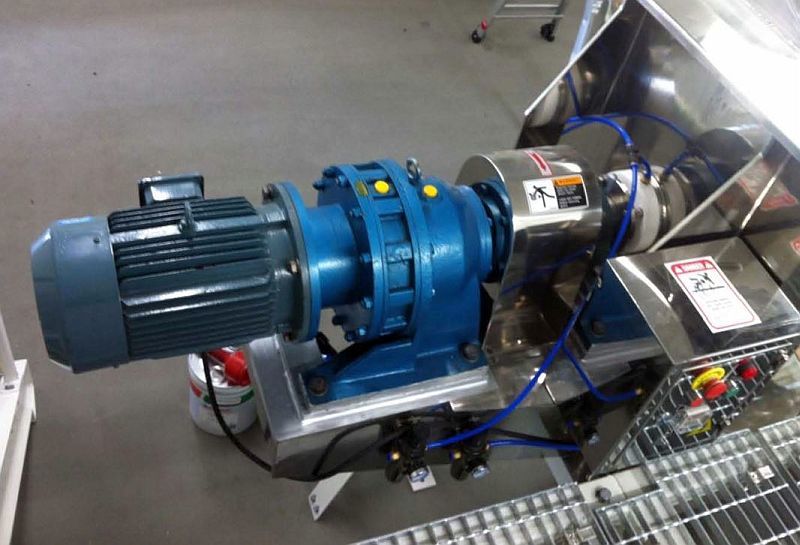

- Drive arrangement: Direct drive from cycloid gear unit complete with 3 phase, 50Hz, 415V motor. The drive includes necessary safety guarding.
- Rotation speed (typically): 37 rpm.

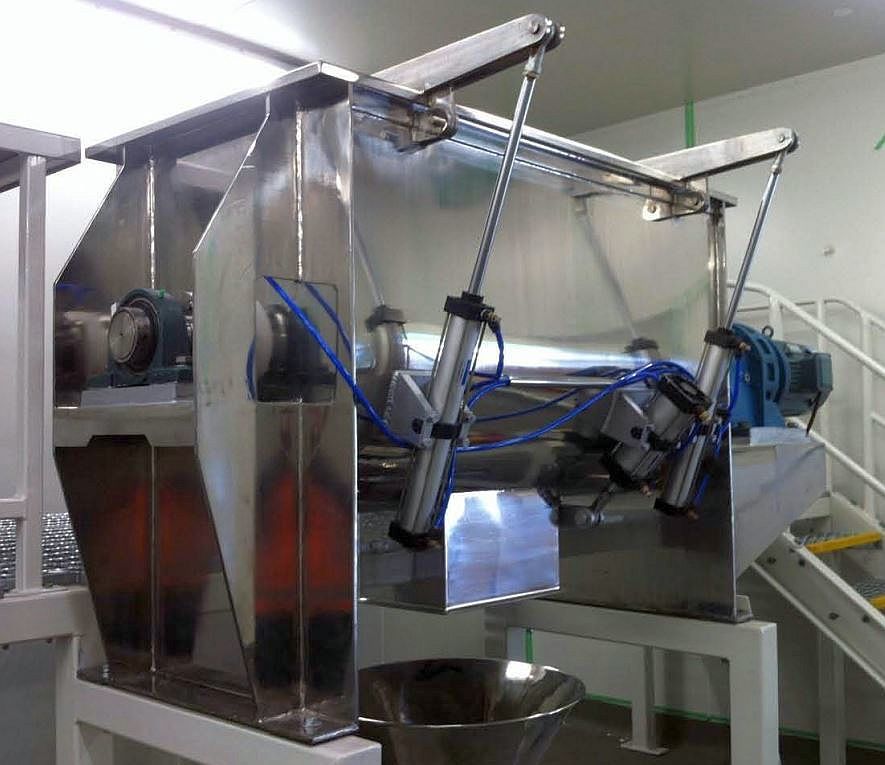

- Design: the blender is fitted with a full top lid unit. A safety grid is provided across the top of the blender mixing chamber. Discharge is from a central outlet.

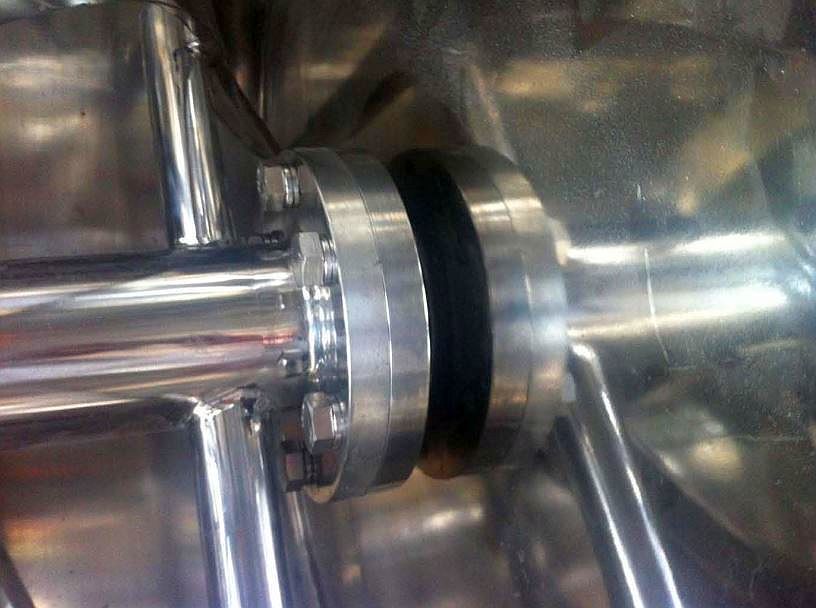

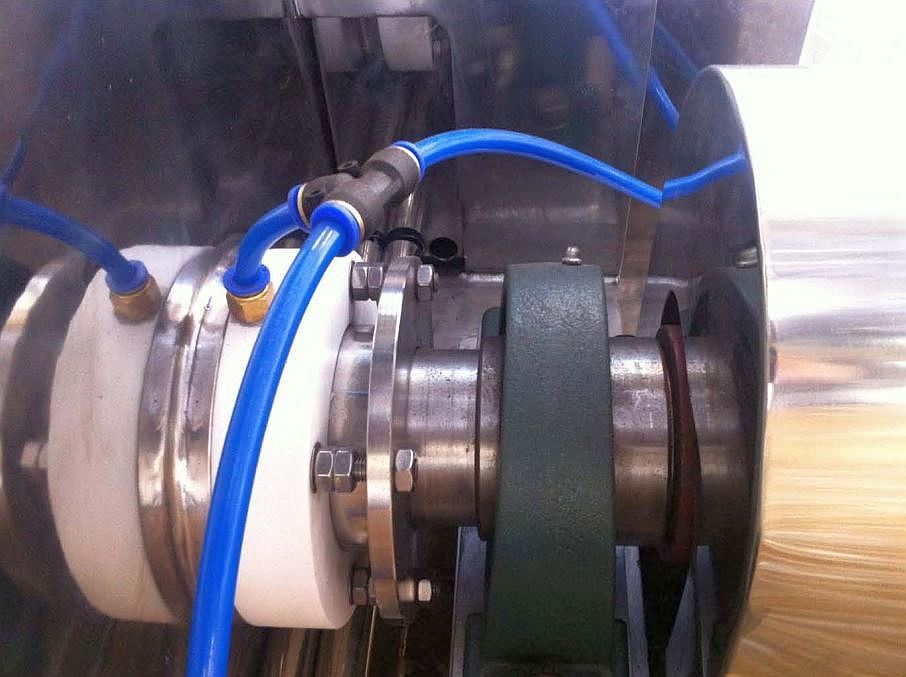

- Fabrication: All contact surface areas are finished in polished type 304SS with welds finished to food grade standards. The shaft seals are fitted with air purge labyrinth end seals and gland packed end plates.
- Finish: polished 304SS for all contact surface areas.

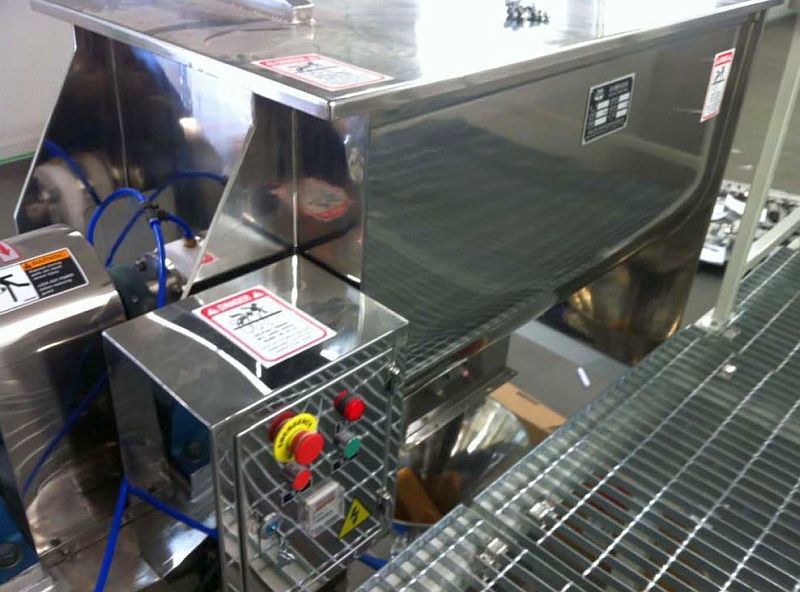

- Fittings: The blender is supplied complete with electrical control panel including starter and interlocks.

Application:
The WLDH series Horizontal Ribbon mixer is a well proven product which ensures high efficiency mixing. It is widely used in the solid-solid (powder material) and solid - liquid (powder material & fluid material), mixing within the fields of the chemical, pharmaceutical and foodstuff industries.

Working Principle:

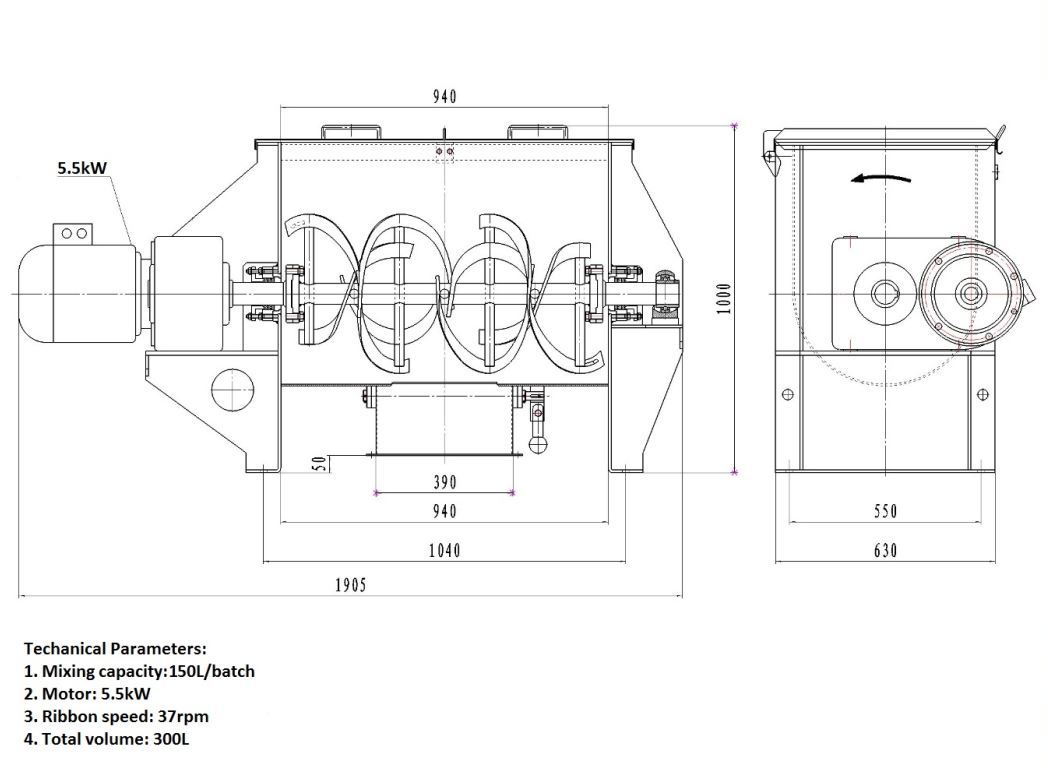

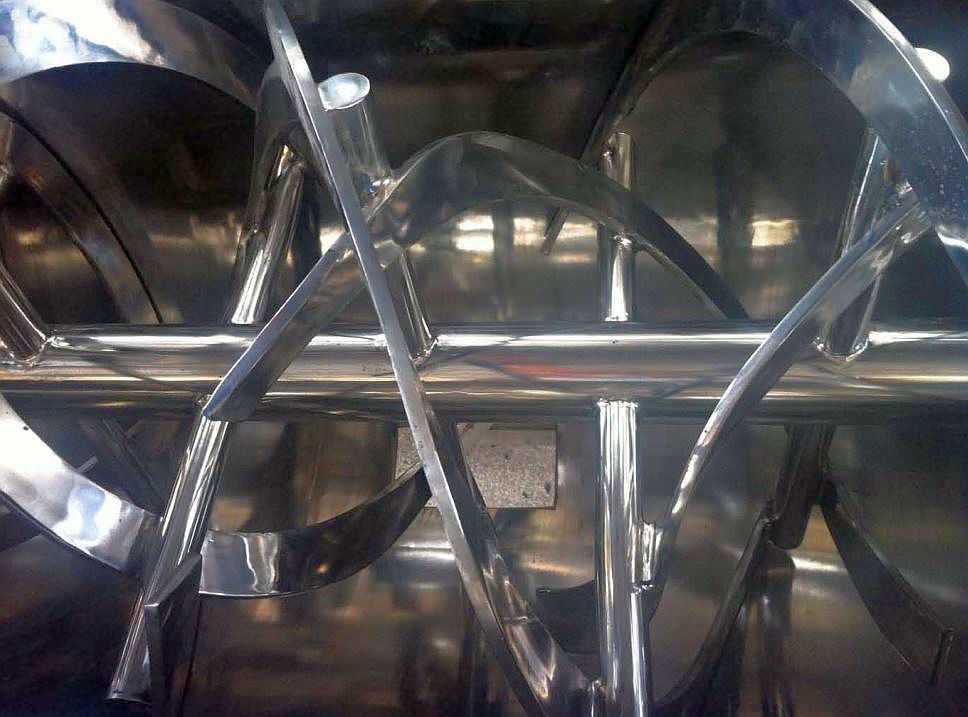

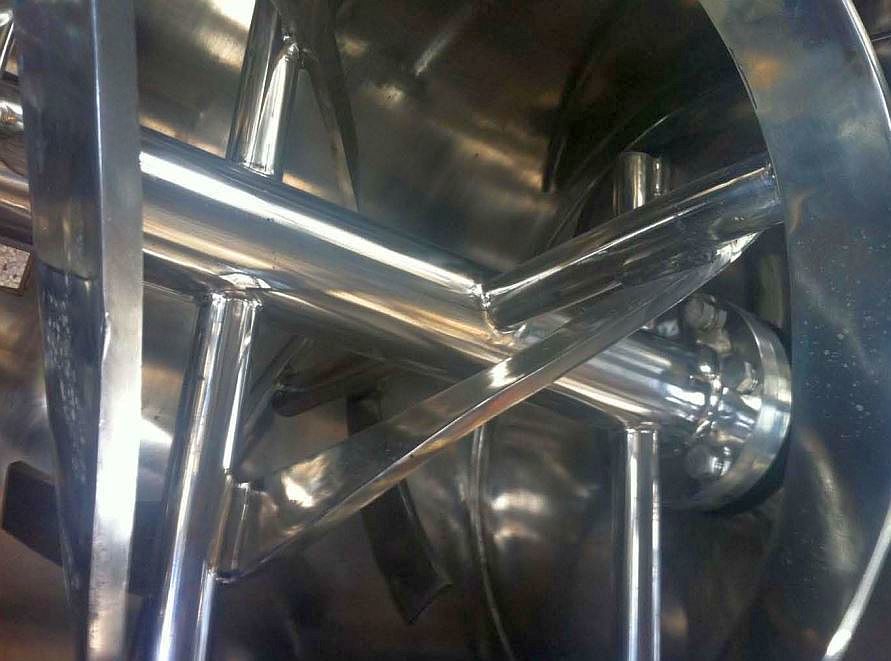

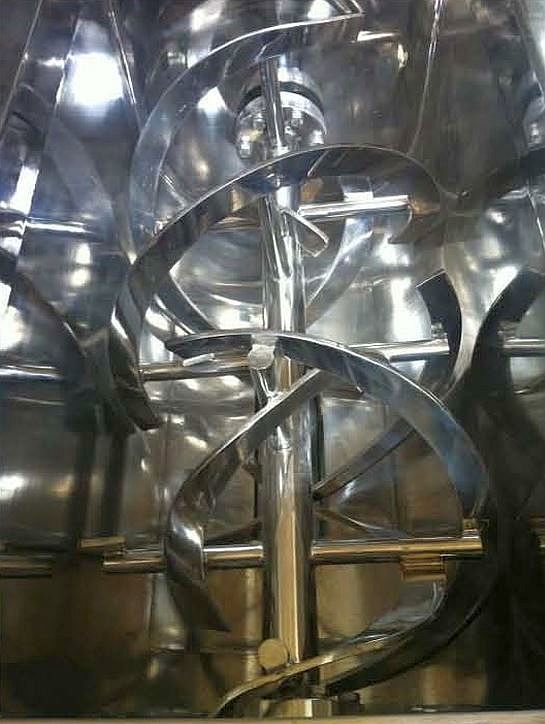

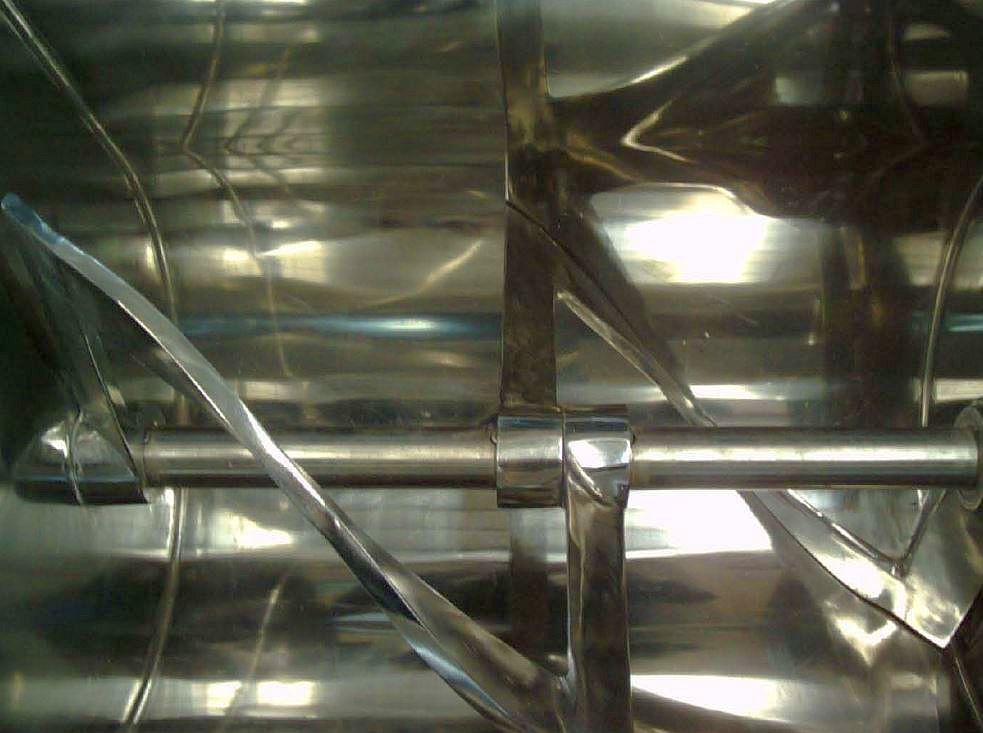

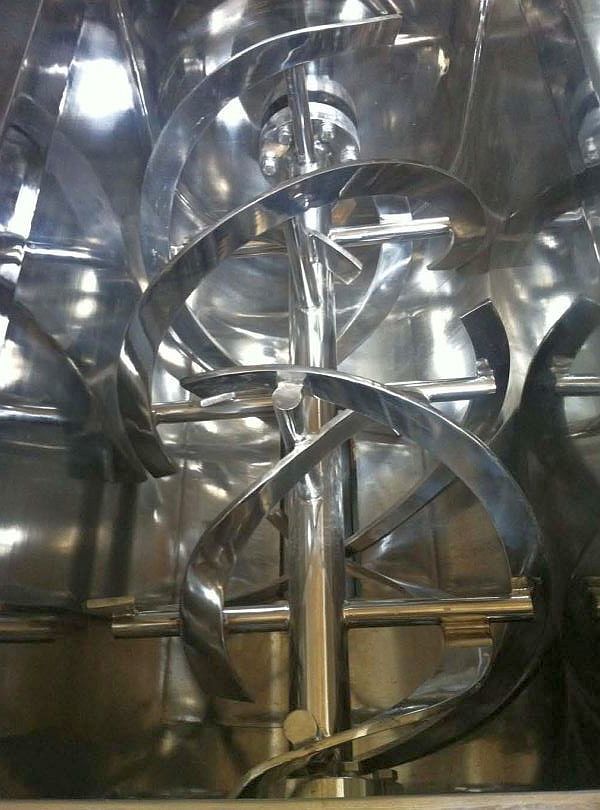

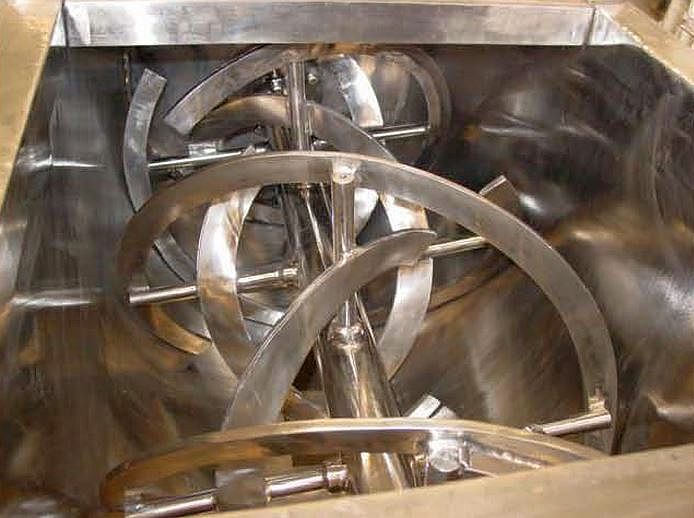

WLDH series mixer is comprised of a mixing barrel, spiral ribbon and driving assembly. The spiral ribbon is made of two layers that are the inner ribbon which conveys the material to move outwards while the external ribbon conveys the material to move inwards. This forms an efficient circulation of material within the machine body; the ribbon mixer can achieve a rapid mixing efficiency in a very short period. These units are fabricated in stainless steel and complies with the GMP standards.

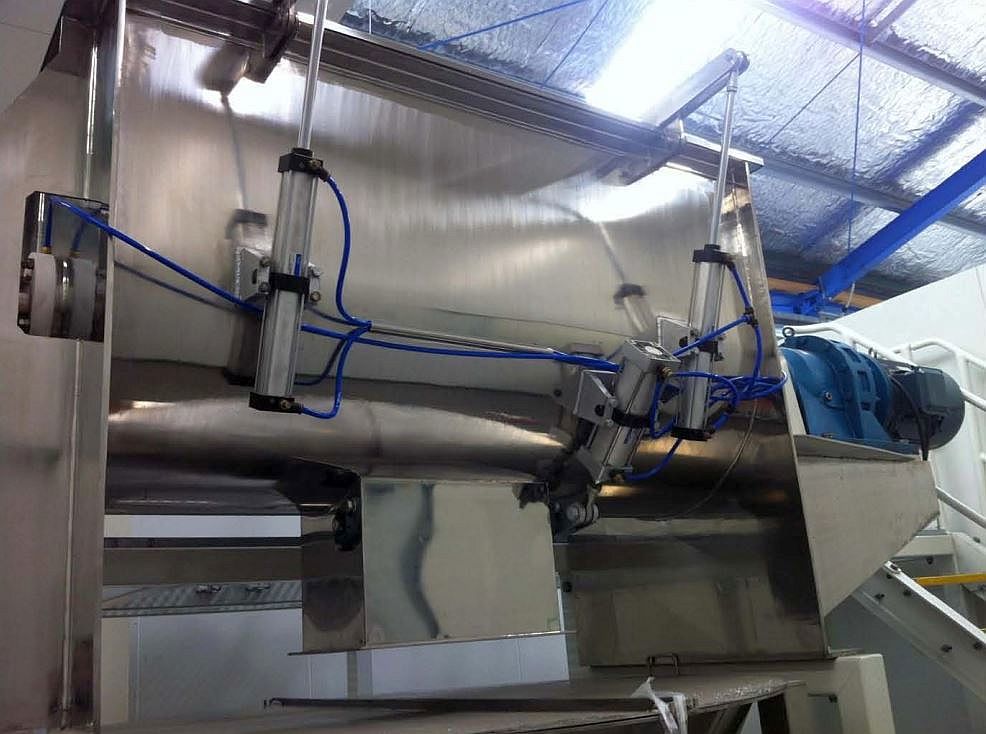

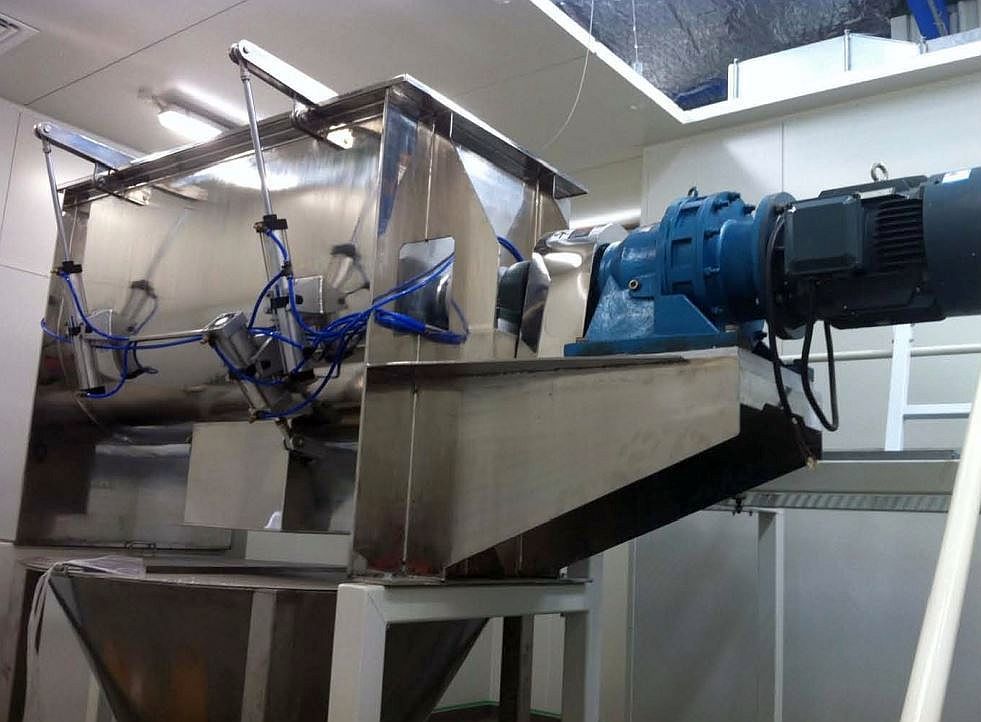

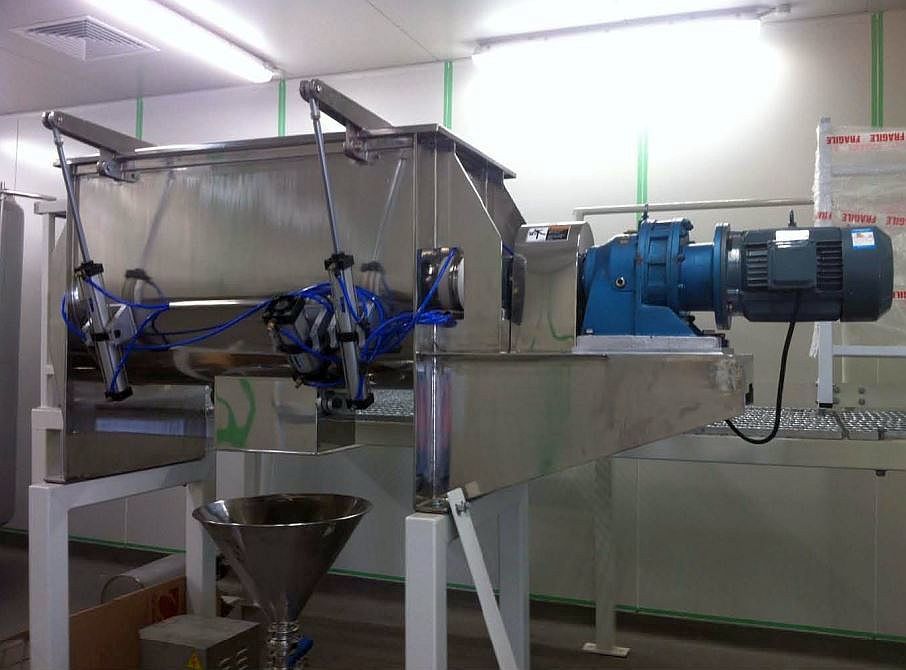

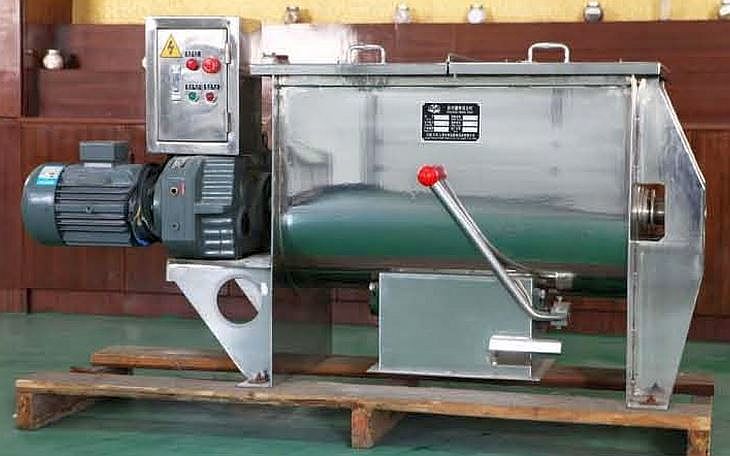

PLEASE NOTE: The majority of the photos displayed are of the 500 litre model.
